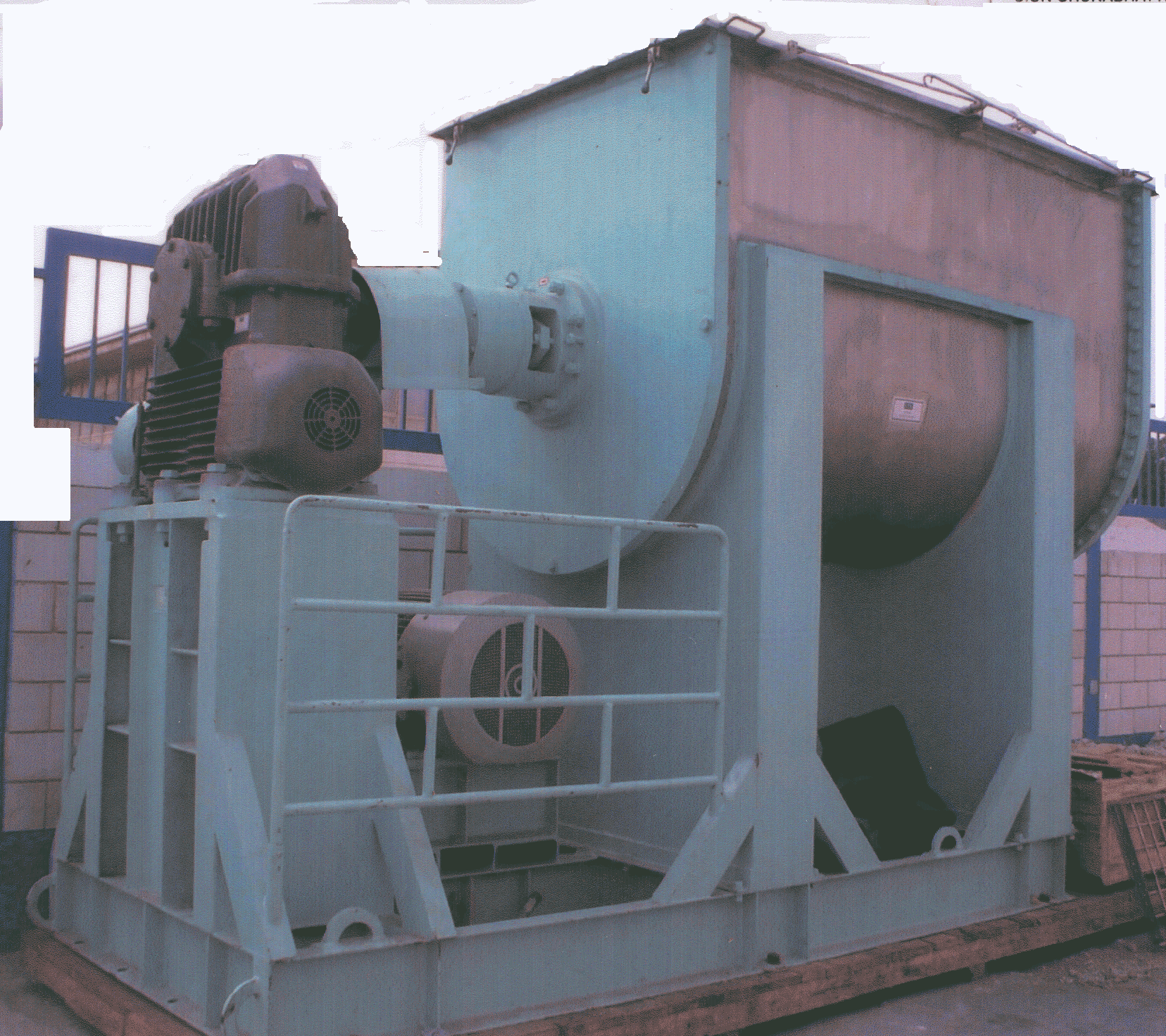

U.T.Mixer
Features :

  • This machine is made of stainless steel ss 304 or ss316 'u' shape with 's" blades and paddles for excellent mixing
  • The 's" blade design allows the mixing of various chemicals to be mixed thoroughly with water.
  • Different designs of the blades available for mixing and blending.
  • Textured emulsion paints are made easily in this excellent designed machine with highest viscosities.
  • Interior and exterior fillers can also be made in this 'u' mixer.
  • The complete trough from inside with the blades are buffed with mirror finish.
  • The discharge is done from one end of the 'u' trough making it easy to fill the drums beneath it through leak proof valve
  • The rpm of the machine is kept low to make the mixing thoroughly uniform and by keeping the gap well maintained allowing the sand to pass and mix thoroughly in this trough.
  • Top lid is also in stainless steel with safety charging grid for powder charging and water inlet and dust collection facility provided
Description:

excellent machine used for manufacturing TEXTURED EMULSION paints and fillers.Easy handling facility and to be mounted with mezannine floormakes the machine easy for charging,cleaning and maintenance.With the discharge facility given on the one side of the machine, the products can be easily discharged from the valve.The tins in which you need to fill the textures can be easily filled with adjustment given in the valve for flow control.Continuous automatic conveyor system withlid closing facility can be attached below the machine so that the tins filled in can be packed and despatched out.The complete machine has unique designed blade and the blade can be changed easily .


Sizes:   5Kg / 20Kg / 50Kg / 100Kg / 200Kg / 500Kg / 1000Kg / 1500Kg / 2000Kg / 2500Kg / 3000Kg / 4000Kg / 5000Kg / 6000Kg / 7500Kg / 10000Kg are made as per the designs *Please note the above volumes given are the total volume of the trough and the working volume is 70% of the above volume x specific gravity of the product.
